Homework 5: Harper's Bazaar

A. Goals

The purpose of the Harper's Bazaar assignment is to practice using object types and learn about object-oriented design principles. The specific goals are to:

B. Coding style and testing

Now that you've had time to digest the feedback from the Cheat Checker assignment, we expect you to think about good style and development habits as you program. We will therefore be stricter about these issues in office hours as well as grading. This is a good time to review the following guidelines:

TAs HAVE BEEN INSTRUCTED NOT TO READ, OR ASSIST IN DEBUGGING, CODE WITH POOR STYLE OR WITHOUT EVIDENCE OF DEBUGGING EFFORT. TAs will not look at code that is stylistically inadequate, poorly indented, uncommented, disorganized, or completely untested (let alone uncompiled). They will review the conceptual aspects of the part of the assignment you are working on, and help you understand compiler errors and runtime errors, but will then leave you to clean up your code and apply your understanding to debug it on your own. This policy applies both in office hours and on Piazza.

C. Background

When you pluck a string on a musical instrument, the middle of the string bounces wildly up and down. Over time, the tension in the string causes it to move more regularly and less violently, until it finally comes to rest. High frequency strings have greater tension, which causes them to vibrate faster, but also to come to rest more quickly. Low frequency strings are looser, and vibrate longer.

In this assignment, you will write a program to simulate plucking a harp string using the Karplus-Strong algorithm. This algorithm played a seminal role in the emergence of physically modeled sound synthesis (in which a physical description of a musical instrument is used to synthesize sound electronically).

From a mathematical physics viewpoint, the Karplus-Strong algorithm approximately solves the 1D wave equation, which describes the transverse motion of the string as a function of time.

D. Your program

You will write a program Harp.java that uses a RingBuffer class and a HarpString class to create a simulation of a harp, implementing the Karplus-Strong algorithm.

E. Getting started






This assignment was originally developed by Andrew Appel, Jeff Bernstein, Maia Ginsburg, Ken Steiglitz, Ge Wang, and Kevin Wayne. It was adapted by Benedict Brown.

The components that make the Karplus-Strong algorithm work are the ring buffer feedback mechanism and the averaging operation.

A. The ring buffer

We model the position of the string using a ring buffer data structure. The ring buffer models the medium (a string tied down at both ends) in which the energy travels back and forth. Sonically, the feedback mechanism reinforces only the fundamental frequency and its harmonics (frequencies at integer multiples of the fundamental).

We model a harp string by sampling its displacement from the rest position at numSamples points that are equally spaced points in time. The displacement is a real number between -1/2 and +1/2 (0 represents the rest position itself), and numSamples is calculated as the sampling rate (44,100 Hz) divided by the fundamental frequency (rounding the quotient up to the nearest integer). For instance, each point in the image below represents a displacement of the string from the rest position.

Sampling from Karplus-Strong

A pluck of the string is modeled by filling the ring buffer with random values, just as a physical string bounces wildly when plucked. The string can contain energy at any frequency. We simulate a pluck with white noise by setting each of these numSamples displacements to a random real number between -1/2 and +1/2.

White noise

B. The Karplus-Strong algorithm

After the string is plucked, it vibrates. The pluck causes a displacement which spreads wave-like over time. The Karplus-Strong algorithm simulates this vibration by repeatedly deleting the first sample from the ring buffer (.2 in the below example) and adding to the end of the buffer the average of the first two samples (.2 and .4), scaled by an energy decay factor of -0.997.

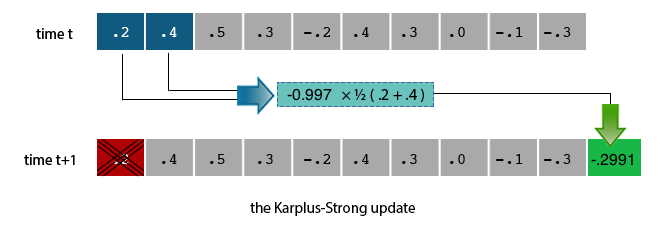

the Karplus-Strong update

Averaging neighboring samples brings them closer together, which means the changes between neighboring samples become smaller and more regular. The decay factor reduces the overall amount that a given point on the string moves, so that it eventually comes to rest. (The sign of the decay factor determines the harmonics that are retained; a negative decay factor retains the odd harmonics of the fundamental, as is the case for a harp.) The averaging operation serves as a gentle low-pass filter, removing higher frequencies while allowing lower frequencies to pass. Because it is in the path of the feedback, this has the effect of gradually attenuating the higher harmonics while keeping the lower ones, which corresponds closely with how a plucked harp string sounds.

The ring buffer length determines the fundamental frequency of the note played by the string. Longer ring buffers are analogous to longer strings on practical instruments, which produce notes with lower frequencies. A long ring buffer goes through more random samples before getting to the first round of averaged samples. The result is that it will take more steps for the values in the buffer to become regular and to die out, modeling the longer reverberation time of a low string.

 2. RingBuffer

In this section you will write and test RingBuffer first. The ring buffer is the data structure that underpins the Karplus-Strong algorithm. RingBuffer will implement the following API:

public class RingBuffer
-----------------------------------------------------------------------------------------
RingBuffer(int capacity)  // create an empty ring buffer, with given max capacity
int currentSize()         // return number of items currently in the buffer
boolean isEmpty()         // is the buffer empty?
boolean isFull()          // is the buffer full?
void enqueue(double x)    // add item x to the end
double dequeue()          // delete and return item from the front
double peek()             // return (but do not delete) item from the front

Start with the provided RingBuffer.java skeleton, then fill in the constructors and methods one by one. Compile frequently, and add code to main to test each method as you write it.

You must follow the API above. We will be testing the methods in the API directly. If your method has a different signature or does not behave as specified, you will lose a substantial number of points. You may not add public methods or instance variables to the API; however, you may add private methods (which are only accessible in the class in which they are declared). You may also add private instance variables for data that must be shared between methods.

In the skeleton file, we have already declared some instance variables for you:

public class RingBuffer {
    private double[] bufferArray; // items in the buffer
    private int first;            // bufferArray[first]  = first item in the buffer
    private int last;             // bufferArray[last-1] = last  item in the buffer
    private int currentSize;      // current number of items in the buffer
}

A. Constructor

RingBuffer(int capacity) constructs a new ring buffer with the given capacity by allocating and initializing the double array bufferArray with length capacity. Observe that this allocation of bufferArray must occur in the constructor (and not when you declare the instance variables), since otherwise you would not know how big to make the array.

B. Methods

Write the remaining methods of RingBuffer.

Every time you implement a method, immediately add code to your main function to test it. To get you started, we have included code in the skeleton that reads in a buffer size as a command-line argument, then creates a RingBuffer with that capacity. We have also include a private method printBufferContents() that prints out the contents of a RingBuffer object for inspection. If you add any instance variables of your own, you will need to update this method to print them out too.

Test cases are a great area for collaboration! You may not look at each other's code, but you are encouraged to discuss what test cases to implement with your classmates, and also to compare the output of your tests with each other. Just remember to note this in your help log.

For performance reasons, your implementation of RingBuffer must wrap around in the array. To do this, maintain one integer instance variable first that stores the index of the least recently inserted item; maintain a second integer instance variable last that stores the index one beyond the most recently inserted item. Ring buffers that wrap around like this are very common in audio and graphics applications because they avoid allocating data or moving memory around. Remember that you will be updating your ring buffers 44,100 times per second. To manage that, each update has to do as little work as possible.)

isFull() and isEmpty() return whether buffer is at capacity and whether it is completely empty. Go ahead and write these now. You can do a little bit of testing already by checking whether the buffer created in main is full or empty. It should always be empty since you haven't added anything to it yet. Likewise, it should only be full if capacity is zero. Once you implement enqueue you'll be able fill up your buffers.

enqueue(double x) inserts the value of x at the end of the ring buffer, putting it at index last (and incrementing last). Test it by enqueuing a variety of different values in main and printing the contents of the object. Think about what situations might trigger errors and make sure you test them.

dequeue() removes an item, taking it from index first (and incrementing first). Mix calls to dequeue() with calls to enqueue() in your testing code. Print out values you dequeue() as well as the remaining contents of the buffer.

When either the first or last index is equal to the capacity, make that index wrap around by changing its value to 0.

peek() returns the first item in the buffer without removing it. Mix some calls to peek() in with the rest of your testing code in main, and print what it returns to help test it.

currentSize() returns the number of items in the buffer. Keep in mind that the current size of the RingBuffer (the number of items in it) is not necessarily the same as the length of the array. To get an accurate count of the number of items in your RingBuffer, increment the instance variable currentSize each time you add an item, and decrement it each time you remove.

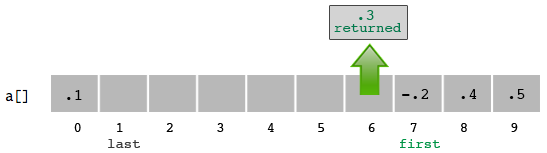

Here is a demonstration of how the enqueue() and dequeue() methods work:

In the skeleton file, we have included exception-throwing statements that crash your program when the client attempts to dequeue() from an empty buffer or enqueue() into a full buffer. This is a mechanism for generating run-time errors in your program, and will help you identify bugs. (Remember: once your code is working properly, these conditions should never occur, so your program should never crash. But if you has a bug while you're developing it, you'd like your program to crash immediately so it's easier to debug.) The following is an example of a throw statement:

if (isEmpty()) {
    throw new RuntimeException("ERROR: Attempting to dequeue from an empty buffer.");
}

Leave these statements in your code, as they will be useful when debugging future sections of the assignment.

See Vector.java for some other examples and p. 446 in Sedgewick & Wayne for a slightly expanded explanation of exceptions.

 3. HarpString

Next, write and test HarpString, which uses RingBuffer to implement the Karplus-Strong algorithm. HarpString should implement the following API:

public class HarpString
-------------------------------------------------------------------------------------------
HarpString(double frequency)       // create a harp string of the given frequency,
                                   // using a sampling rate of 44,100
void pluck()                       // set the buffer to white noise
void tic()                         // advance the simulation one time step
double sample()                    // return the current sample
int time()                         // return the total amount of tics

The design of your HarpString class should look like the provided HarpString.java skeleton, except that you will need to fill in all of the constructors and methods.

Again, you must follow the API above. We will be testing the methods in the API directly. If your method has a different signature or does not behave as specified, you will lose a substantial number of points. You may not add public methods or instance variables to the API; however, you may add private methods (which are only accessible in the class in which they are declared). You may also add private instance variables for data that must be shared between methods.

A. Constructor

HarpString(double frequency) creates a RingBuffer of capacity numSamples, where numSamples is the sampling rate of 44,100 Hz divided by frequency, rounded up to the nearest integer. (Hint: Check out Math.ceil().) The constructor then fills the RingBuffer to represent a harp string at rest by enqueueing numSamples zeros. The constant 44100 should be declared as a static variable (because it is a constant value that is shared by all harp strings that you create) in your HarpString class. Do not hardcode it in your constructor. Remember that proper style for static variable names is to write them in all-caps with underscores to separate words.

Writing a reasonable test case for HarpString is a bit of a pain, so we've included a main function to get you started. Eventually you'll need to think about cases that aren't covered by what we provide you and add them. For now though – if your constructor works – the test we provide should at least create a string with a capacity of 10 that is initially full. The rest of the test that tics through a bunch of samples won't work until you implement the remaining methods.

B. Methods

sample() should return the value of the item at the front of the ring buffer.

pluck() should replace all numSamples items in the ring buffer with numSamples random values between -0.5 inclusive and +0.5 exclusive. To implement this, use a combination of the RingBuffer methods to replace the buffer with random values between -0.5 and 0.5.

tic() should apply the Karplus-Strong update: compute the average of the first two samples of the ring buffer, multiplied by the energy decay factor (-0.997), delete the sample at the front of the ring buffer, then add the new sample to the end. The constant -0.997 should be declared as a static variable in your HarpString class. Hint: don't rewrite functions you have already implemented.

time() should return the total number of times tic() was called.

C. Checkpoint

To test your HarpString class, run it with the given test code in main with a command-line argument numSamples. The given test code creates a HarpString from some samples, then runs tic() numSamples times, printing the values of time() and sample().

NullPointerException – Check the line number provided in the stack trace. An object you are using in this line has not been initialized correctly, and thus has the value of null. Attempting to access variables or call functions on a null object will throw a NullPointerException.

This main() method does not test all methods. You should write your own code in main() to test all aspects of this class. (You need not comment out any testing code that you add in main()).

> java HarpString 25
testString.buffer.isEmpty(): false
testString.buffer.isFull():  true
     0   0.2000
     1   0.4000
     2   0.5000
     3   0.3000
     4  -0.2000
     5   0.4000
     6   0.3000
     7   0.0000
     8  -0.1000
     9  -0.3000
    10  -0.2991
    11  -0.4487
    12  -0.3988
    13  -0.0498
    14  -0.0997
    15  -0.3490
    16  -0.1496
    17   0.0499
    18   0.1994
    19   0.2987
    20   0.3728
    21   0.4225
    22   0.2237
    23   0.0746
    24   0.2237
4. Harp

Write a program Harp.java that simulates a 37-string harp with notes ranging from 110 Hz to 880 Hz.

A. MiniHarp

Read MiniHarp.java. MiniHarp is a two-string version of Harp that you can use to test your RingBuffer and HarpString classes before moving on to write Harp.

Run MiniHarp, and type the lowercase letters a and c into the PennDraw window to pluck the two strings. If you have completed RingBuffer and HarpString correctly, run MiniHarp to check to see that everything works properly. You should hear two different pitches corresponding to A and C every time you press the a and c keys.

MiniHarp uses PennDraw to receive keystrokes and StdAudio to play sound.

Notice that MiniHarp adds the samples of the HarpStrings (i.e. superposes them) to compute the sound sample to play.

Notice how MiniHarp uses an infinite loop to continually receive keystrokes from the user and generate new music samples. This infinite loop ends when the program terminates.

Error: dequeue/peek from an empty buffer in MiniHarp – You may not have initialized the ring buffer to contain numSamples zeros in your HarpString(double frequency) constructor.

Lack of sound when running MiniHarp for the first time – Make sure you have tested HarpString with the main() provided in the skeleton file. If that works, it is likely something wrong with pluck() since the main() provided for HarpString does not test that method. To diagnose the problem, print out the values of sample() and check that they become nonzero after you type the lower case characters a and c.

Clicking when running MiniHarp (either one click, or continual clicking) – It's likely that pluck() is working, but tic() is not. The best test is to run the main() provided for HarpString.

B. Harp

Model your Harp class on the given MiniHarp code. Where MiniHarp had two HarpStrings, Harp has 37.

Harp should behave such that when a character of NOTE_MAPPING (defined below) is pressed, Harp plays the corresponding note. The character at index i of NOTE_MAPPING corresponds to a HarpString frequency of 440 × 2(i - 24) / 12, so that the character 'q' (character index0 of NOTE_MAPPING) is 110 Hz, 'i' (index 12) is 220 Hz, 'v' (index 24) is 440 Hz, and ' ' (index 36) is 880 Hz. You should declare a static variable in Harp for the value 440.0 and for NOTE_MAPPING (but you need not do so for 24 and 12).

String NOTE_MAPPING = "q2we4r5ty7u8i9op-[=zxdcfvgbnjmk,.;/' ";

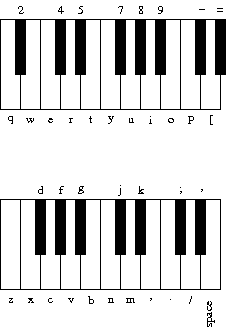

This keyboard arrangement imitates a piano keyboard: the "white keys" are on the qwertyuiop[ and zxcvbnm'./ rows and the "black keys" on the 1234567890-= and asdfghjkl;, rows of the standard US QWERTY keyboard layout.

Piano keyboard

The number 37 should not appear anywhere in your code. Don't even think of using 37 individual HarpString variables or a 37-way if statement. Instead, create an array of HarpString objects and use NOTE_MAPPING.indexOf(key) to figure out which key was typed, if any. Make sure your program does not crash if a key is played that is not one of your notes. (indexOf() returns -1 if the string does not contain the character key.)

You need not worry about calling StdAudio.play() with a value greater than 1.0 or less than -1.0. StdAudio.play() automatically clips the value to within the range 1.0 to -1.0.

C. Checkpoint

Comment out all print statements in your loop when testing Harp. Because print statements take time, they delay the computation of samples, and so your speaker will not receive samples at the rate of 44,100 per second needed to make a meaningful sound.

Once you've completed Harp, try playing this familiar melody by pressing the keys below, pressing space where S is denoted.

nn//SS/ ..,,mmn //..,,m //..,,m nn//SS/ ..,,mmn

Type the following into your harp to get the beginning of Led Zeppelin's Stairway to Heaven. Multiple notes in a column are dyads and chords.

                                              w q q
        8       u       7       y             o p p
i p z v b z p b n z p n d [ i d z p i p z p i u i i

There are many ways to build on Harp.java. Some of these can earn extra credit. Others cannot, but are included below for you to implement if you are interested.

A. Extra Credit 1

Write a program VisualHarp.java (by modifying Harp.java) that plots the sound wave in real-time using PennDraw, as the user is playing the keyboard harp. The output could look something like this, but change over time. You are free to be as creative as you wish with your visualization, as long as the visualization is driven by the sound samples being emitted.

Sampling from Karplus-Strong

There are lots of different ways to visualize the sound, and any kind of animation that is tied to the sound samples is just fine. If you want to plot the sound wave similar to the figure above, you'll find the PennDraw.point() and PennDraw.polyLine() functions useful, although there are other options that also work fine.

If you draw lots of points, first call PennDraw.setPenRadius(0) once. This ensures that each point is a single pixel, and they will draw faster. (This is not conceptually interesting; it's a performance hack in the PennDraw implementation.)

Do not redraw the wave (or whatever animation you choose to make) on every sample because PennDraw will not be able to keep up. Instead, set a lower frame rate, and draw a batch of samples at a time. (For instance, you might set the frame rate to 44.1 and draw a new image every 1000 sound samples.) Experiment with different frame rates to find one that you think looks good and draws smoothly. There is more than one way to handle the drawing – there is no "right" way to do this.

B. Extra Credit 2

Bring your laptop to recitation the week after this homework is due and perform a piece for your classmates. You may perform in groups if you wish, and you may use a modified version of your program for the performance if you wish.

C. Challenge for the bored

The ideas below are purely for you own enjoyment if you want to explore further. They are not worth any extra credit, and you will not submit them. They're just for fun.

Do not make these modifications in the version of the RingBuffer.java, HarpString.java, or Harp.java that you submit. Instead, make new copies of these files with different names, and experiment in your new files.

Modify the Karplus-Strong algorithm to synthesize a different instrument. Consider changing the excitation of the string (from white noise to something more structured) or changing the averaging formula (from the average of the first two samples to a more complicated rule) or anything else you might imagine. This is a challenge for the bored, so you will not receive extra credit for it, but you may use these suggestions as the basis for your visualization or your performance in class.

Alexander Strong suggests a few simple variants you can try:

D. Enrichment

A. Readme

Complete readme_harpersbazaar.txt in the same way that you have done for previous assignments.

B. Submission

Submit RingBuffer.java, HarpString.java, Harp.java, and readme_harpersbazaar.txt on the course website.

You may also submit VisualHarp.java for Extra Credit 1. If your VisualHarp program requires any additional files, you may submit them in a compressed file named extra.zip.

Your recitation TAs will arrange a time for you to complete Extra Credit 2.

You may not submit any modifications from the "Challenge for the Bored" section in the RingBuffer.java, HarpString.java, or Harp.java files.
